Turn Your Backhoe into a
Crane in Just 30 Minutes


The most efficient way to lift is now affordable.

You can dig a basement in the morning and set roof trusses in the afternoon with the same machine. The PWCE backhoe crane will let you get the most work out of your backhoe loader.

1000 Lift Capacity

    • Trusses
    • Wall Panels
    • Forms
    • Shingles
    • Plywood
    • Pipe

The PWCE backhoe crane has been fitted with many safety devices to protect against overloading and hydraulic hose failure. Hose break valves and relief cartridges are standard with all PWCE backhoe cranes.

Sample Price:
Series 100 = $10,000.00
For 13,000 to 25,000 lbs machines

The Most Productive Tool You Will Ever Buy

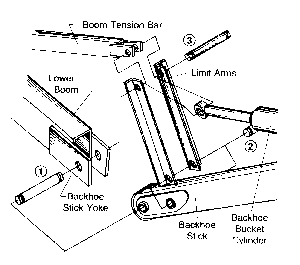

Easy Installation

  • Remove bucket and linkage from dipper stick and align stick end between crane connecting ears.
  • Connect new linkage arms to stick.
  • Connect linkage arms, bucket cylinder, and boom tension arm.


Easy to Transport
The crane can easily be stowed under the tractor on the transport trailer, or it can be transported on your pick-up truck rack. Weighing only 1000 lbs. makes it easy to handle.

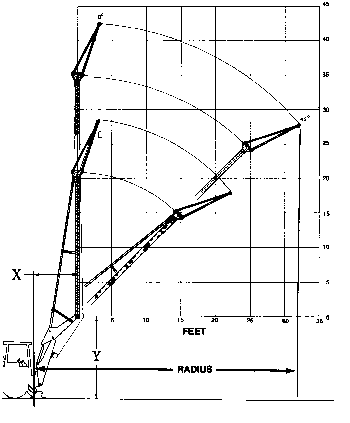

Tip Height and Radius

MAXIMUM LIFT CAPACITIES
(Pounds) for Tractor Loader Backhoes

X= The distance horizontally from the backhoe swing-pin to the bucket pin hole in the backhoe stick.
Radius
(feet)

Backhoe operating weight
13,000 - 17,000 lb______17,000 - 25,000 lb

0 thru 15' 1000 lb 1000 lb
20' + X 750 1000
25' + X 625 1000
30' + X 525 1000
35' + X 500 1000
Y= The distance vertically from the ground line to the bucket pin hole in the backhoe stick.
NOTE: X & Y condition are met only when the backhoe boom is in the transport lock and the backhoe stick cylinder is totally retracted.

Paul Wever Construction Equipment is dedicated to product support for the construction equipment industry. We provide owners, operators, and dealers with solutions to their problems. If you have a need for engineering services, new product development, or current product support, please call us.


If you have any questions, please contact Paul Imm - Sales Manager.

Paul Wever Construction Equipment Co, Inc.
401 Martin Dr. -- P.O. Box 85
Goodfield, IL 61742
1-800-990-7923

Click on address for directions.


Return To Catalog list


Return To Home Page

Send comments to: mpadilla@pwce.com

Copyright © 2000 Paul Wever Construction Equipment Co., Inc./Paul Wever. All rights reserved.
Last Revised: 6/28/01
